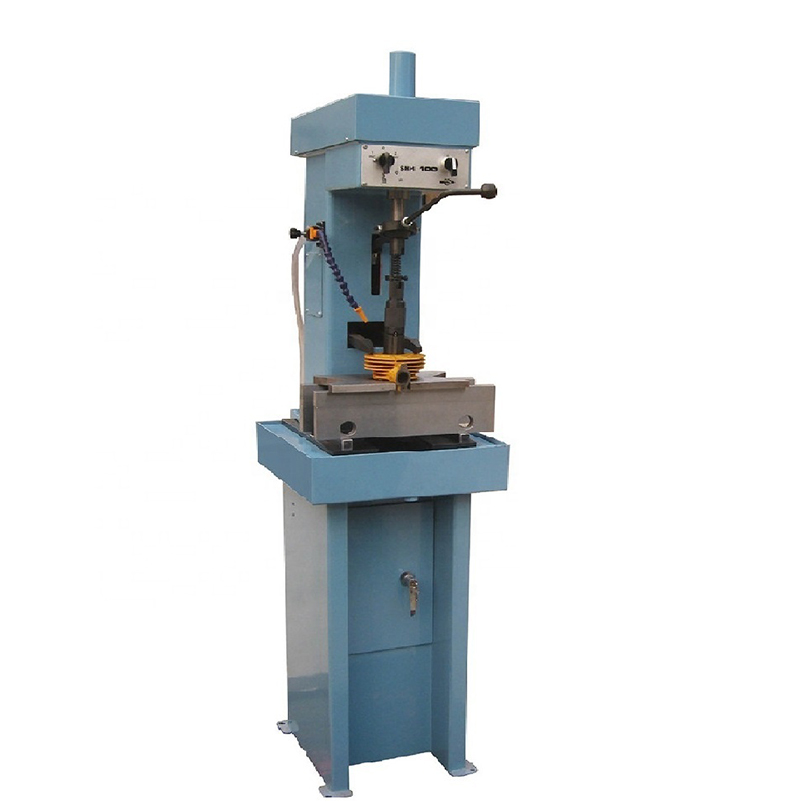

Honing Machine SHM-100
Main features:
This machine is mainly used for honing bored holes in cylinder blocks for motorcycles,factors and air compressors,it can also be used for honing holes on other mechanincal parts.
Main specifications
|
No. |
Items |
Unit |
Parameters |
|
|
1 |
Honing diameter |
mm |
Φ 28 ~ Φ 100 |
|
|
2 |
Max. honing depth |
mm |
200 |
|
|
3 |
Spindle up and down reciprocating speed |
|
Manual |
|
|
4 |
Worktable size(L * W) |
mm |
290 * 150 |
|
|
5 |
Work chamber scope(L * W) |
mm |
390 * 200 |
|
|
6 |
Cooling pump motor power |
kW |
0.04 |
|
|
7 |
Spindle speed |
rpm |
125,250 (Three-phase) |
200,290 (Single-phase) |
|
8 |
Main motor power |
kW |
0.37 / 0.18 |
0.55 |
|
9 |
Voltage |
V |
3-380,3-220 |
1-220 |
|
10 |
Frequency |
Hz |
50,60 |
50,60 |
|
11 |
External dimensions(L * W * H) |
mm |
400 * 580 * 1600 |
|
