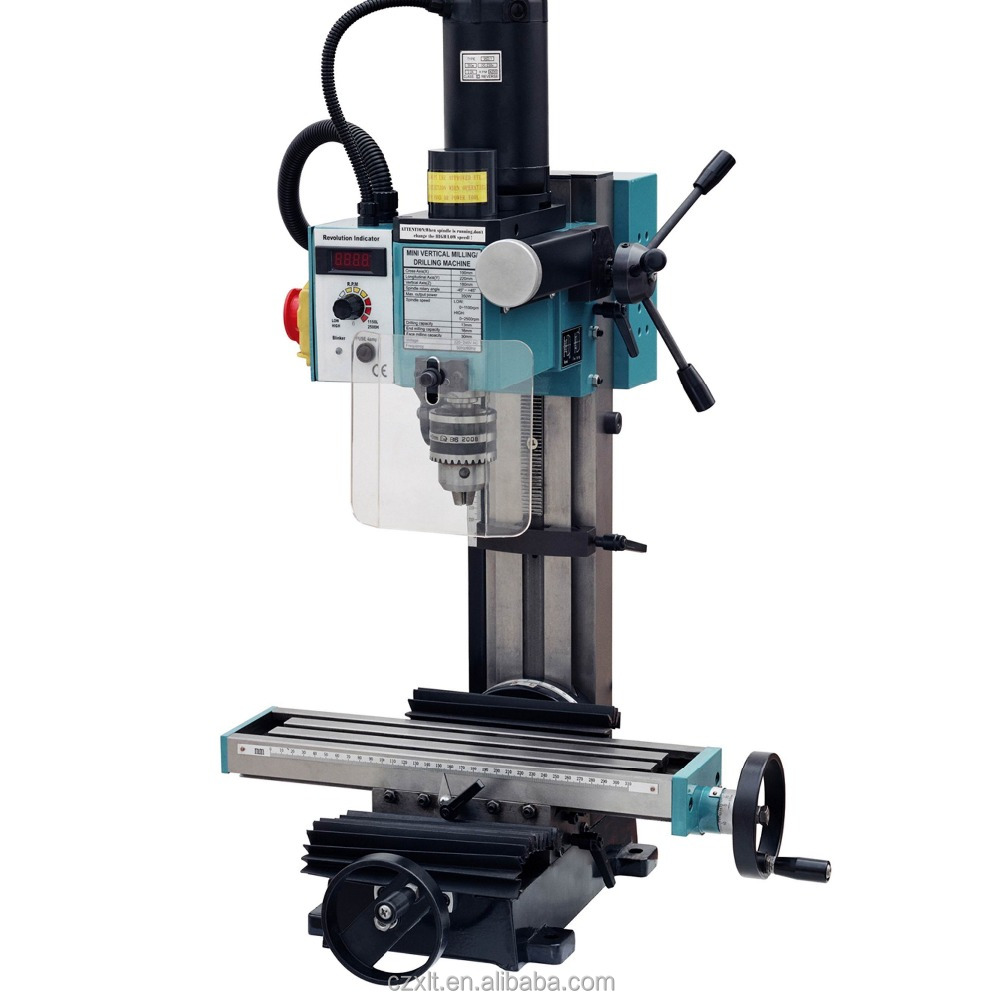

TM13 mini milling machine
(SPECIFICATIONS)
|
Drilling capacity |
13mm |
|
Max.end mill capacity |
16mm |
|
Max.face mill capacity |
30mm |
|
Headstock travel(Z) |
180mm |
|
Cross axis(X) |
100mm |
|
Longitudinal axis(Y) |
220mm |
|
Throat |
170mm |
|
Max.distance spindle to table |
280mm |
|

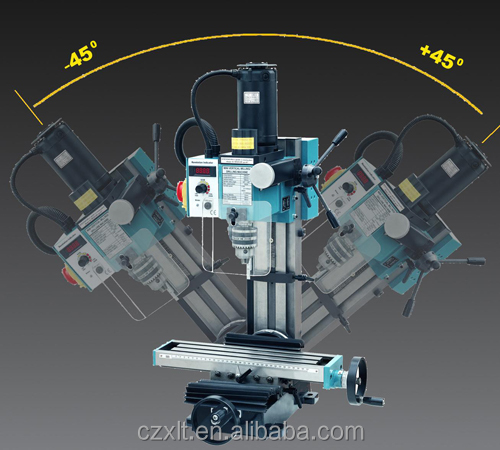

Head tilt |
45°L, 45°R |
|
Spindle taper |
MT3 or R8 |
|
Motor output power |
350W |
|
Spindle speed Low range /High range |
100-1100RPM±10%/ 100-2500RPM±10% |
|
Table effective size |
390×92mm |
|
T-slot size |
12mm |
|
Net weight/Gross weight |
50kg/68kg |
|
Packing size |
520×520×730m |
