| Feature: | |||
| High strength metal gear,corrosion resistant alumin-um alloy belt pulley | |||
| 高強金屬齒輪，耐腐鋁合金帶輪 | |||
| Two "V" precision guide rail, re-enforced by harde-ning and grinding | |||
| 雙“V"型淬火精磨高強導軌 | |||
| High power motor with continually variable transmis-sion, spindle with liquid crystal display | |||
| 無級變速大功率電機，主軸帶速顯 | |||
| Tailstock with clamping lever and offset,small and c-onvenience | |||
| 尾座帶快速側剎，小巧方便 | |||
| 技術參數 Specification | |||

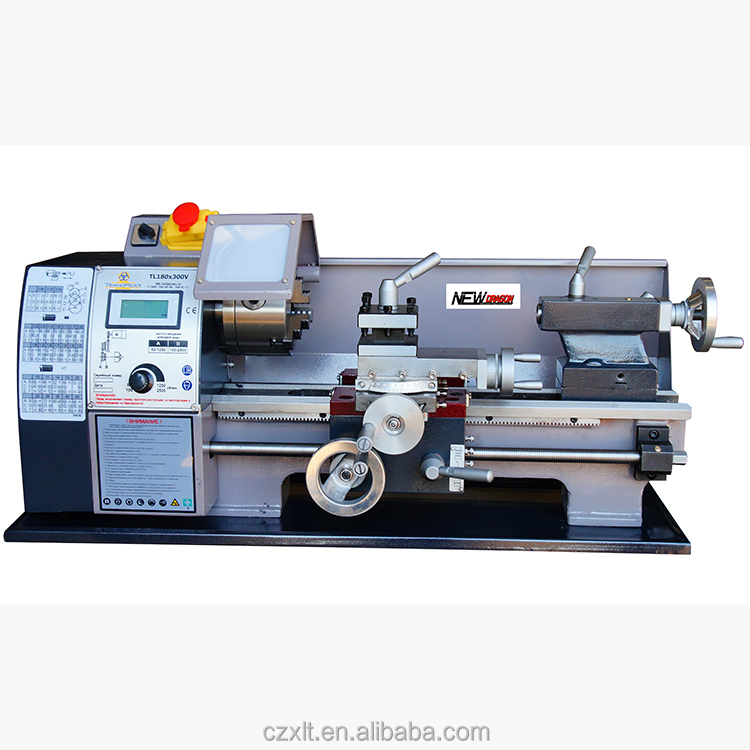

| 型號 Model | Specifications | TL180×300V | |
| 床身回轉直徑 | Swing Over Bed | 180mm | |
| 刀架回轉直徑 | Swing Over Cross Slide | 110mm | |
| 兩頂尖距離 | Distance Between Centers | 300mm | |
| 床身寬度 | Width of Bed | 100mm | |
| 主軸孔徑 | Hole Through Spindle | 21mm | |
| 主軸錐度 | Taper in Spindle Nose | Mt3 | |
| 變擋級數 | Number or Spindle Speeds | Variable | |
| 轉速范圍 | Range of Spindle Speeds | 50-2500RPM | |
| 公制螺紋級數 | Number of Metric Threads | 10 | |
| 公制螺紋范圍 | Range of Metric Threads | 0.5-3mm | |
| 英制螺紋級數 | Number of lmperial Threads | 8 | |
| 英制螺紋范圍 | Range of lmperial Threads | 8-44T.P.I. | |
| 自動進給范圍 | Range of Longitudinal Feed | 0.1-0.20mm | |
| 刀架工位 | Tool Post Type | 4-Way | |
| 刀架托板最大行程 | Maximum Compoud Slide Travel | 55mm | |
| 中托板最大行程 | Maximum Carriage Slide Travel | 75mm | |
| 大托板最大行程 | Maximum Carriage Travel | 195mm | |
| 尾架套筒最大行程 | Tailstock Spindle Travel | 60mm | |
| 尾架錐度 | Taper in Tailstock Spindle | Mt2 | |
| 電機 | Main Motor | 450(600)W/230V/1PH/50HZ | |
| 重量 | Weight | 60KGS | |
| 高 | Height | 370mm | |
| 寬 | Width | 390mm | |
| 長 | Length | 740mm | |
| 包裝尺寸 | Dimension | 800×480×450mm | |
| 標準配件Standard Accessories | 特殊配件 Optional Accessories | ||
| 油盤 Oil pan | 四爪卡盤 4-jaw chuck | ||
| 背盤 Backplate | |||
| 后擋削板 Splash guard | 花盤 Face plate | ||
| 鉆夾頭 Drill chuck | |||
| 三爪卡盤 3-jaw chuck | 絲桿護罩 leadscrew cover | ||
| 刀架護罩 Collet holder | |||
| 工具及工具箱 Tool & Tool box | 亂扣盤 Thread chasing dial | ||
| 車刀 turning tools | |||
| 跟刀架 Follow rest | |||
| 中心架 Steady rest | |||
| 床腳 Stand | |||
