| The machine is an economic CNC lathe controlled by a PC and driven by step motors (or servo motor). | |
| It is suitable for turning turning cylindrical and taper faces, boring, grooving and cutting. | |

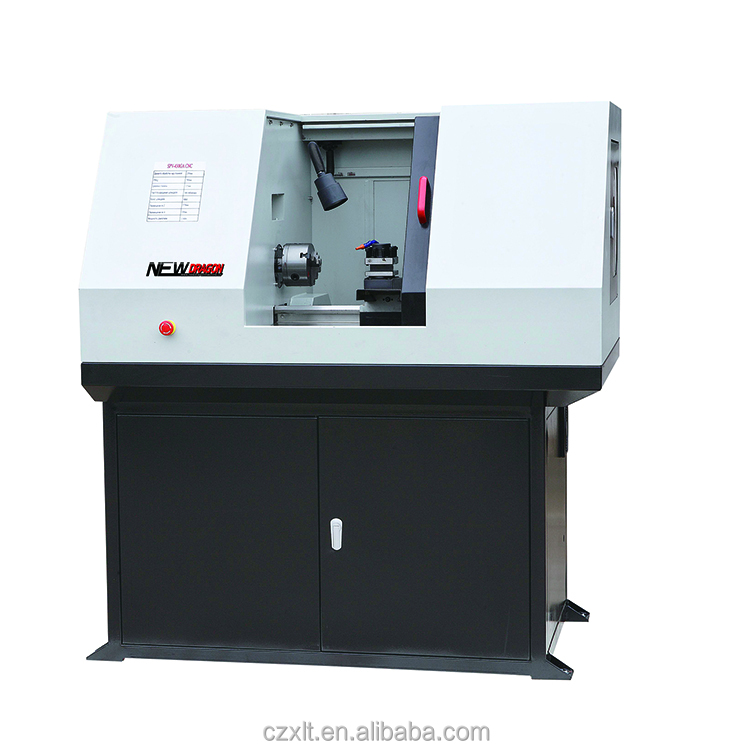

| TL250G CNC LATHE PC-BASE MACHINE CONTROLLED BY MACH3 SYSTEM | |
| Technical data /技術參數 | |
| Model No.型號 | TL250G CNC LATHE |
| Swing over bed床身上回轉直徑 | 250mm |
| Swing over apron拖板上回轉直徑 | 110mm ) |
| Max distance between centers兩頂尖距離 | 700mm |
| The width of bed床身寬度 | 135mm |
| The speed of the spindle主軸速度 | 100-1400r/min |
| The tape of the spindle主軸錐度 | MT3 |
| The max .speed of moving(X.Z)X,Z移動速度 | 2000mm/min |
| The speed of feeding(X.Z)X.Z進給速度 | 500mm/min |
| Max travel Z axis Z軸行程 | 320mm |
| Max travel X axis X軸行程 | 180mm |
| Motor of X axis X軸電機扭矩 | 4N.m |
| Motor of Z axis Z軸電機扭矩 | 4N.m |
| Tool position 電動刀架 | 4 |
| Angle of the tool post刀架轉動角度 | 360° |
| Tape of tailstock尾架錐度 | MT2 |
| Travel of tailstock尾架行程 | 50mm ) |
| Position accuracy定位精度 | 0.015mm |
| Repeatability position accuracy重復定位精度 | 0.01mm |
| Tool post return orientation precision刀具回轉精度 | 0.005mm |
| Main motor power主電機功率 | 1100W |
| Machine size(L*W*H)機床尺寸 |
1710*760*1450mm |
| Packing size(L*W*H)包裝尺寸 | 1830*1070*1685mm |
| Weight(n.w/g.w)機床重量 | 480/570kg |
