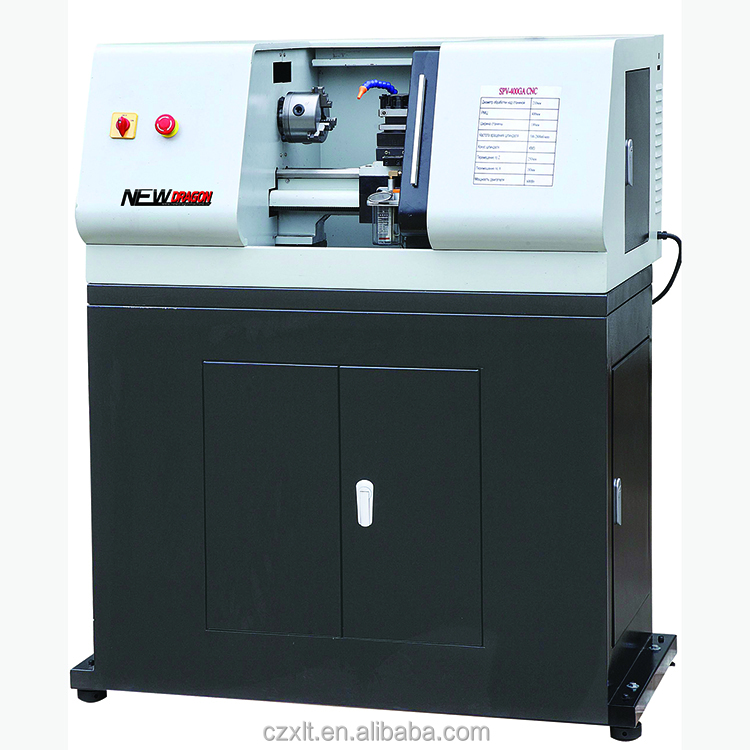

| The machine is an economic CNC lathe controlled by a PC and driven by step motors (or servo motor). | |
| It is suitable for turning turning cylindrical and taper faces, boring, grooving and cutting. | |
| TL-210CNC PC-BASE MACHINE CONTROLLED BY MACH3 SOFTWARE | |
| Technical data /技術參數 | |
| Model No.型號 | TL-210CNC |
| Swing over bed 回轉直徑 | 210mm |
| Distence betweer certers 床身長度 | 400mm |
| Width of bed 床身寬度 | 100mm |
| Spindle speed 主軸轉速 | 500-28000r/min |
| Spindle taper 主軸錐度 | MT3 |
| Z-axis moving Z軸移動速度 | 2000mm/min |
| X-axis moving X軸移動速度 | 1000mm/min |
| Z-axis feeding Z軸進給速度 | 500mm/min |
| X-axis feeding X軸進給速度 | 250mm/min |
| Z-axis torque Z軸最大扭矩 | 2Nm |
| X-axis torque X軸最大扭矩 | 2Nm |
| Z-axis travel Z軸行程 | 250mm |
| X-axis travel X軸行程 | 80mm |
| Motor of Z axis Z軸電機扭力 | 2N |
| Motor of X axis X軸電機扭力 | 2N |
| Tool position 刀具個數 | 4 |
| Angle of the tool post 刀架角度 | 360° |
| Tape of tailstock 尾架錐度 | MT2 |
| Travel of tailstock 尾架行程 | 50mm |
| Z.X-axis position accuracy Z.X軸返回精度 | 0.01mm |
| Position accuracy of tools 刀具回轉精度 | 0.005mm |
| Main motor power 電機功率 | 600W |
| Packing size 包裝尺寸 | 1080×784×1550mm |
| Weight（n.e/g.w）重量（凈重/毛重） | 165/200KG |
